WTR is WekoWater’s own fully electric, self-propelled irrigation machine – the first of its kind on the market. Developed and tested in Denmark, it offers a future-proof solution for sustainable field irrigation.

Below you can read the technical descriptions of selected components that make WTR the irrigation machine of the future.

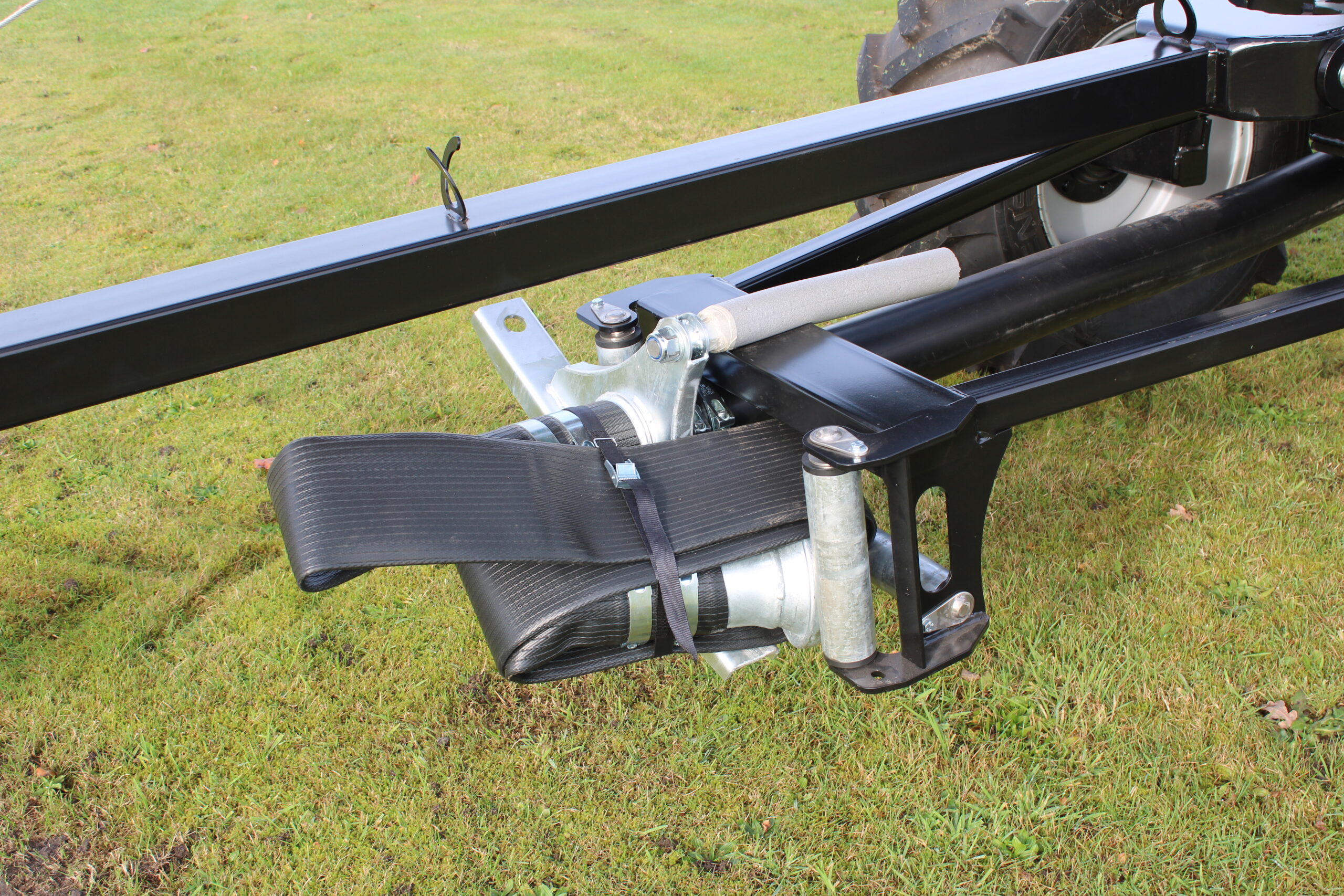

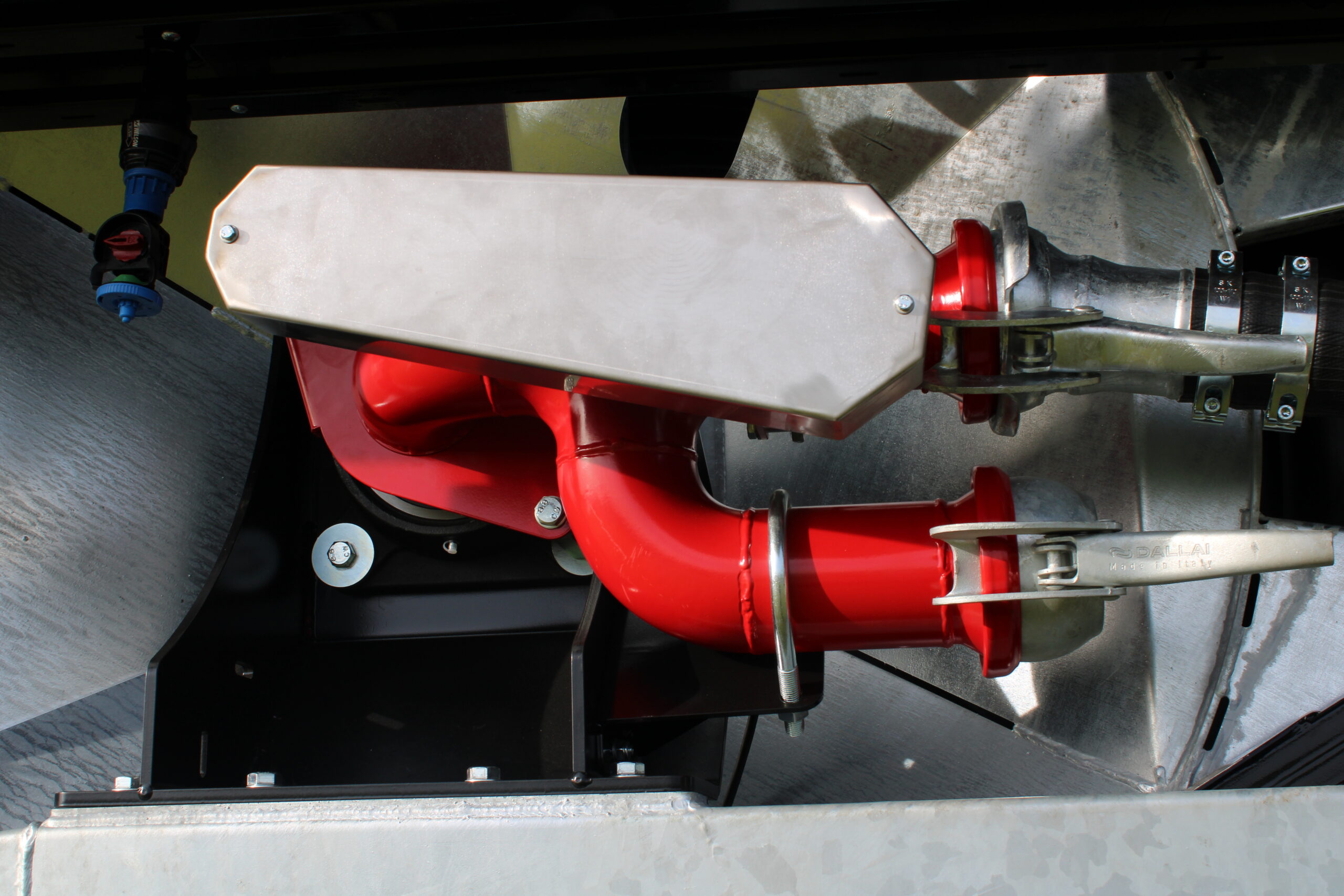

Feeding tube

The WTR irrigation machine features the traditional feeding tube with Bauer coupling and the well-known stop function.

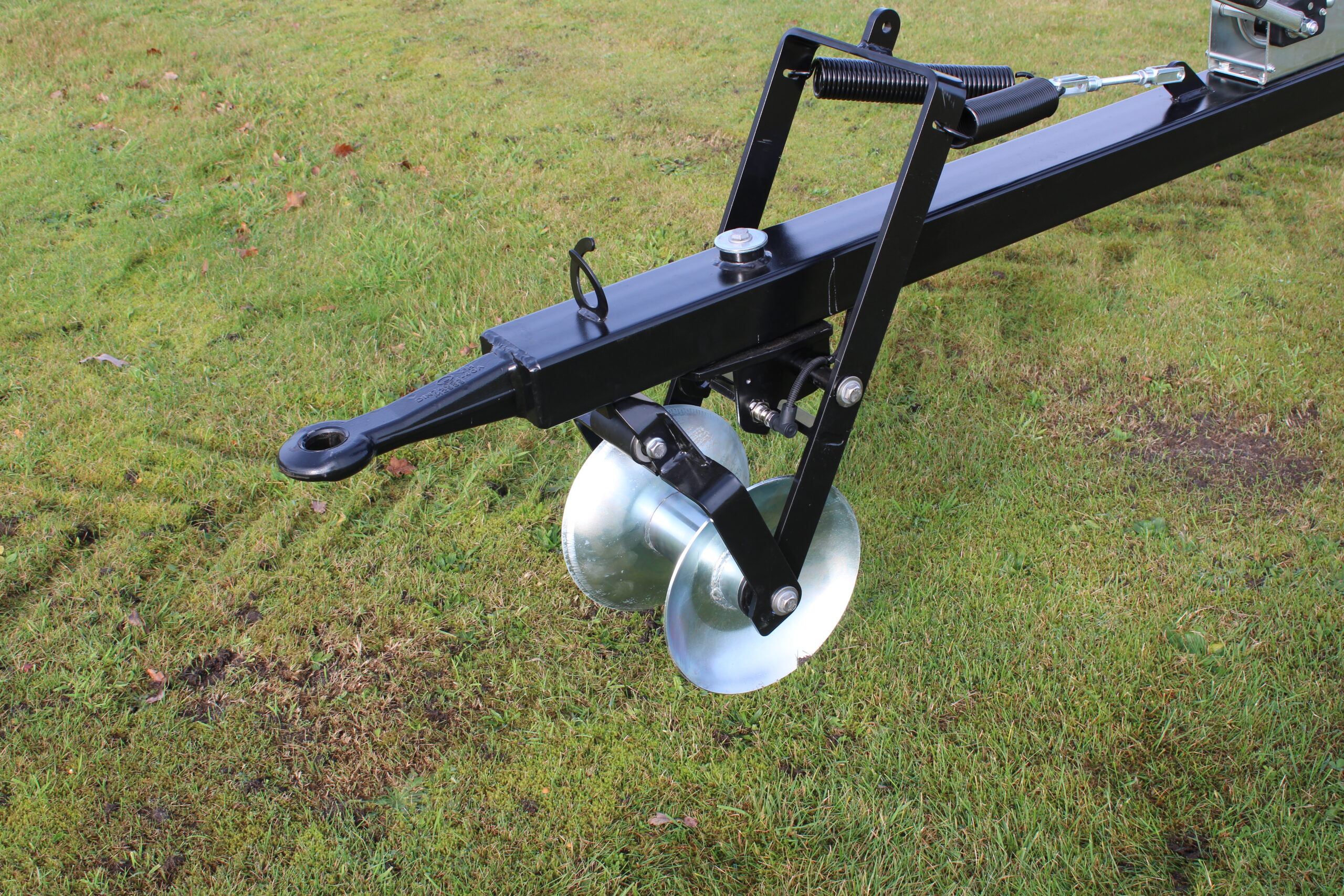

The drawbar on the WTR irrigation machine includes:

• Wire hoist
• Flexible nose wheel
• Electric stop sensor

The control system allows you to select stop for overpressure and underpressure.
The actuator for opening and closing is electric and supplied by Linak.

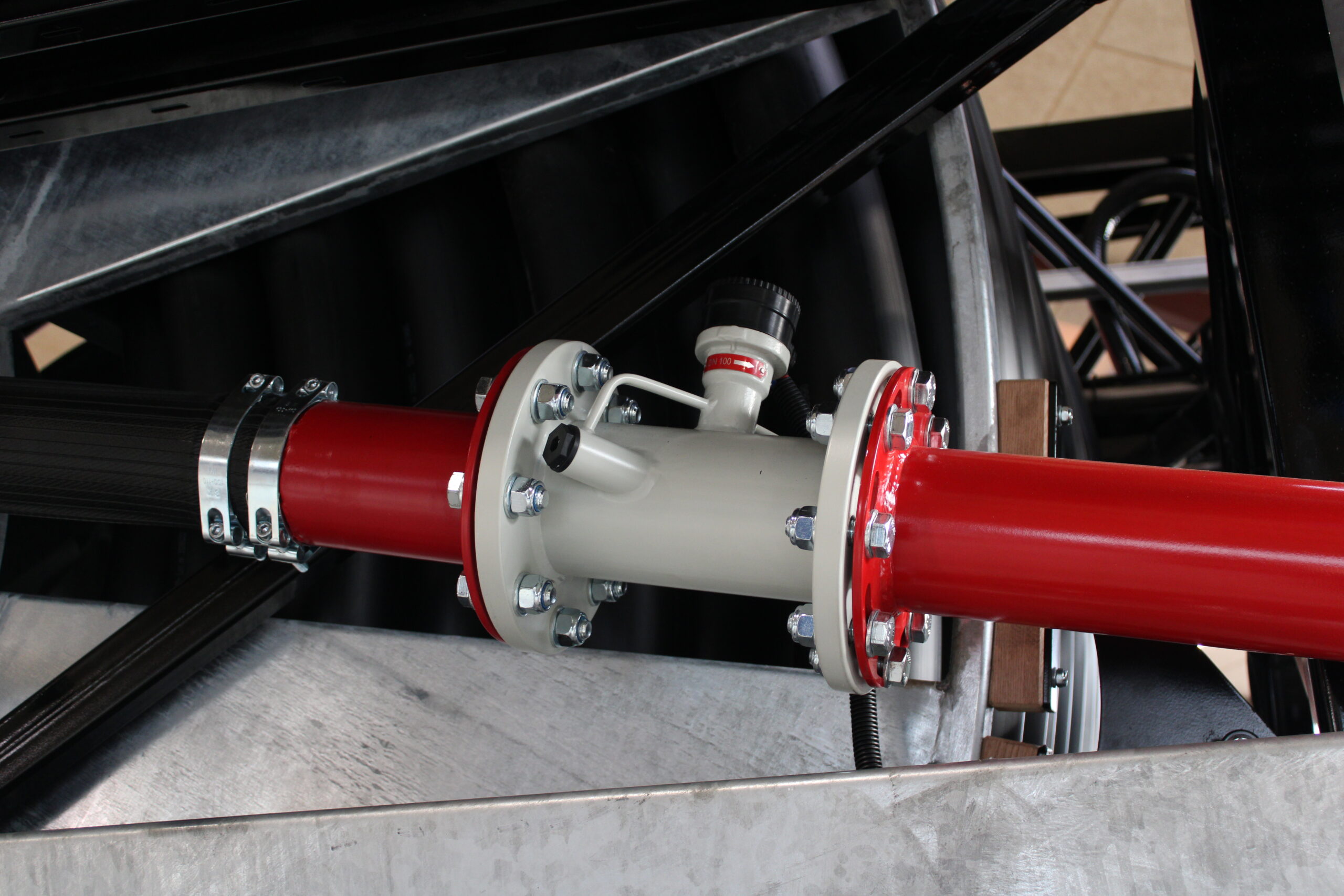

Irrigation based on flow, with the option to adjust speed according to flow.

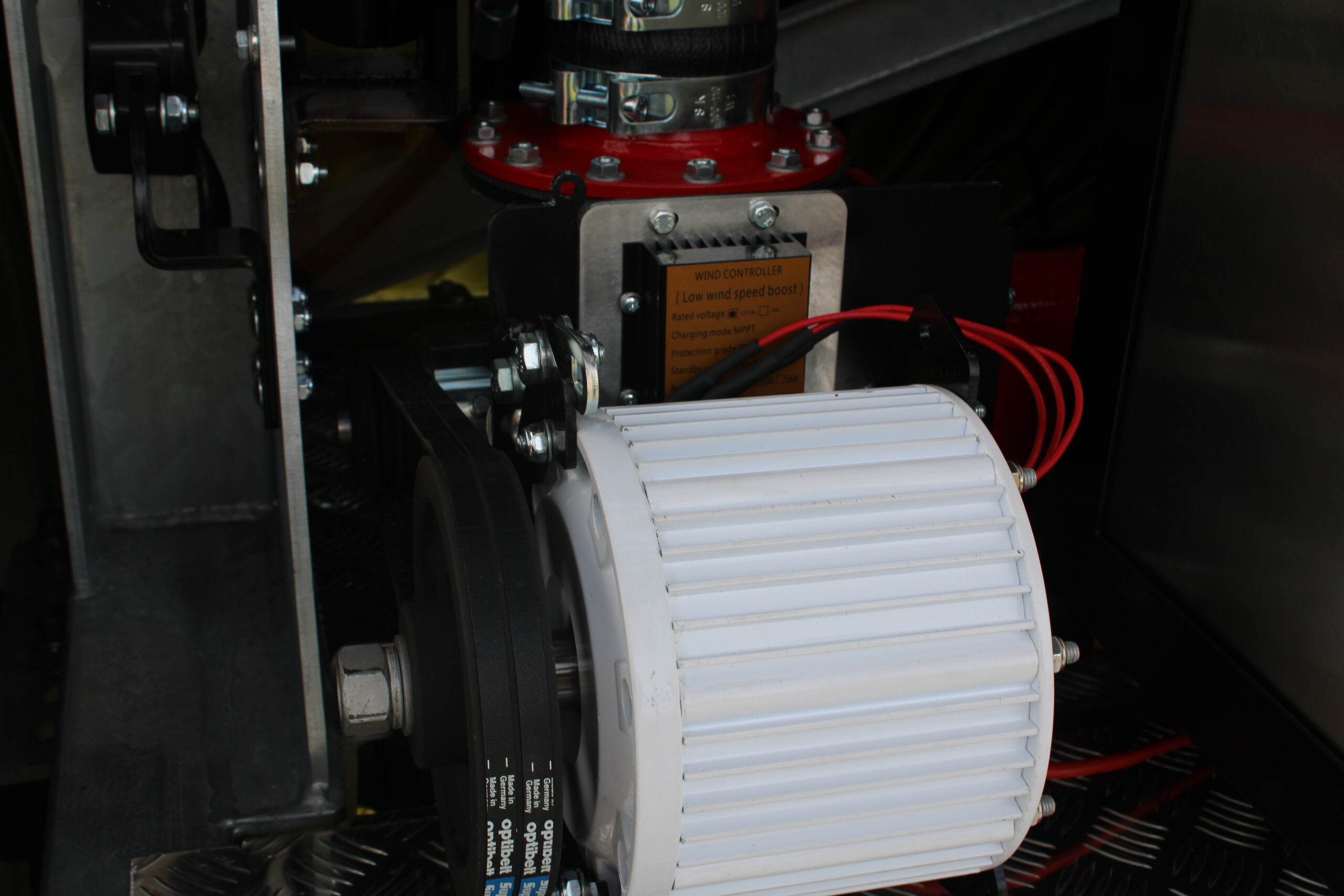

Rosenqvists were the first in the world to develop an irrigation machine powered by a turbine instead of a piston – an invention they held a patent on for many years. It was therefore natural to expand the collaboration and equip the WTR irrigation machine with a Rosenqvists turbine.

• The turbine charges and maintains the battery. At 25–30 km/h, it uses approx. 20–25% of the battery’s capacity.
• Generator + Controller (1000 W permanent magnet generator)

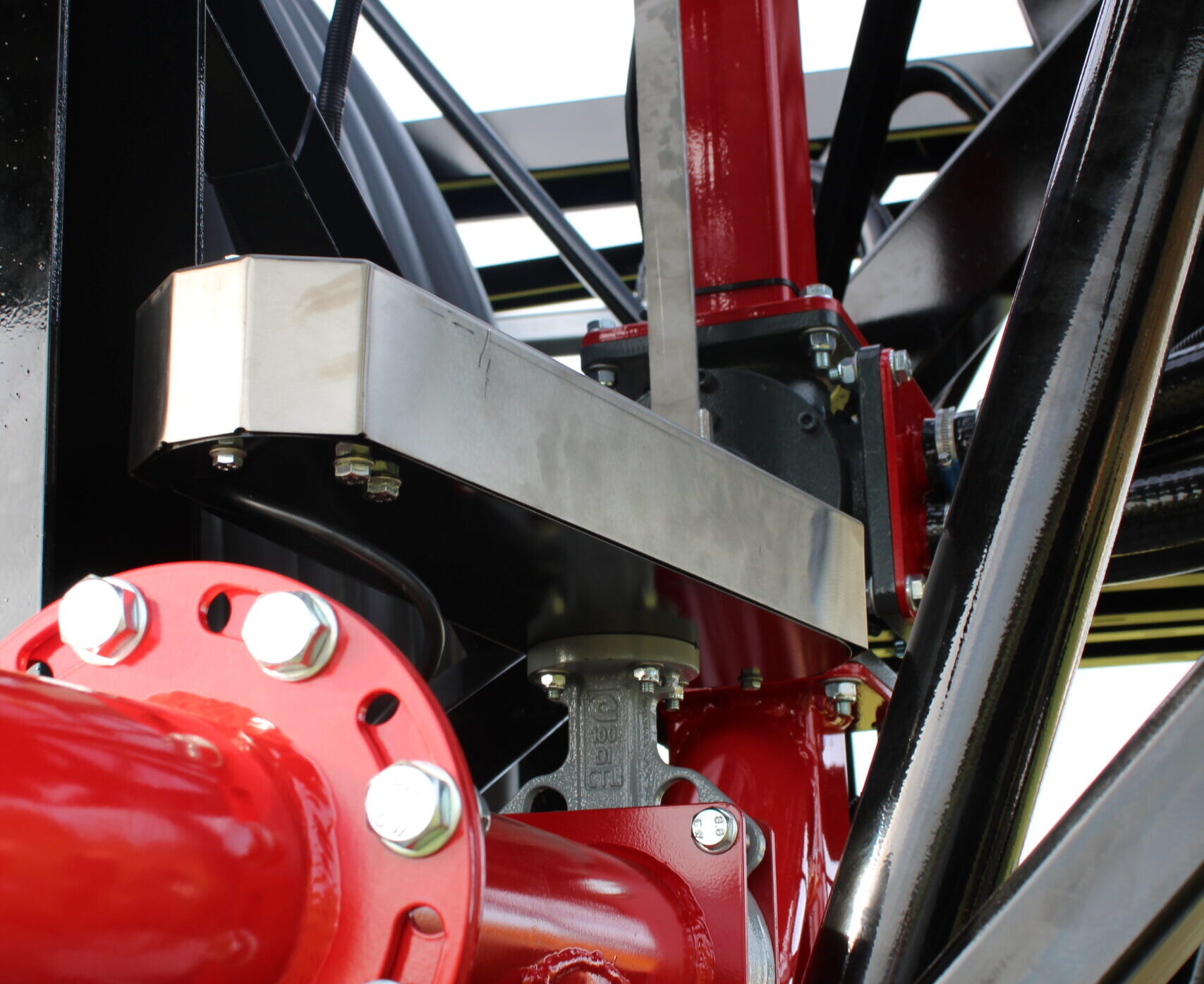

• Bypass via Linak actuator
• Control system ensures correct battery voltage

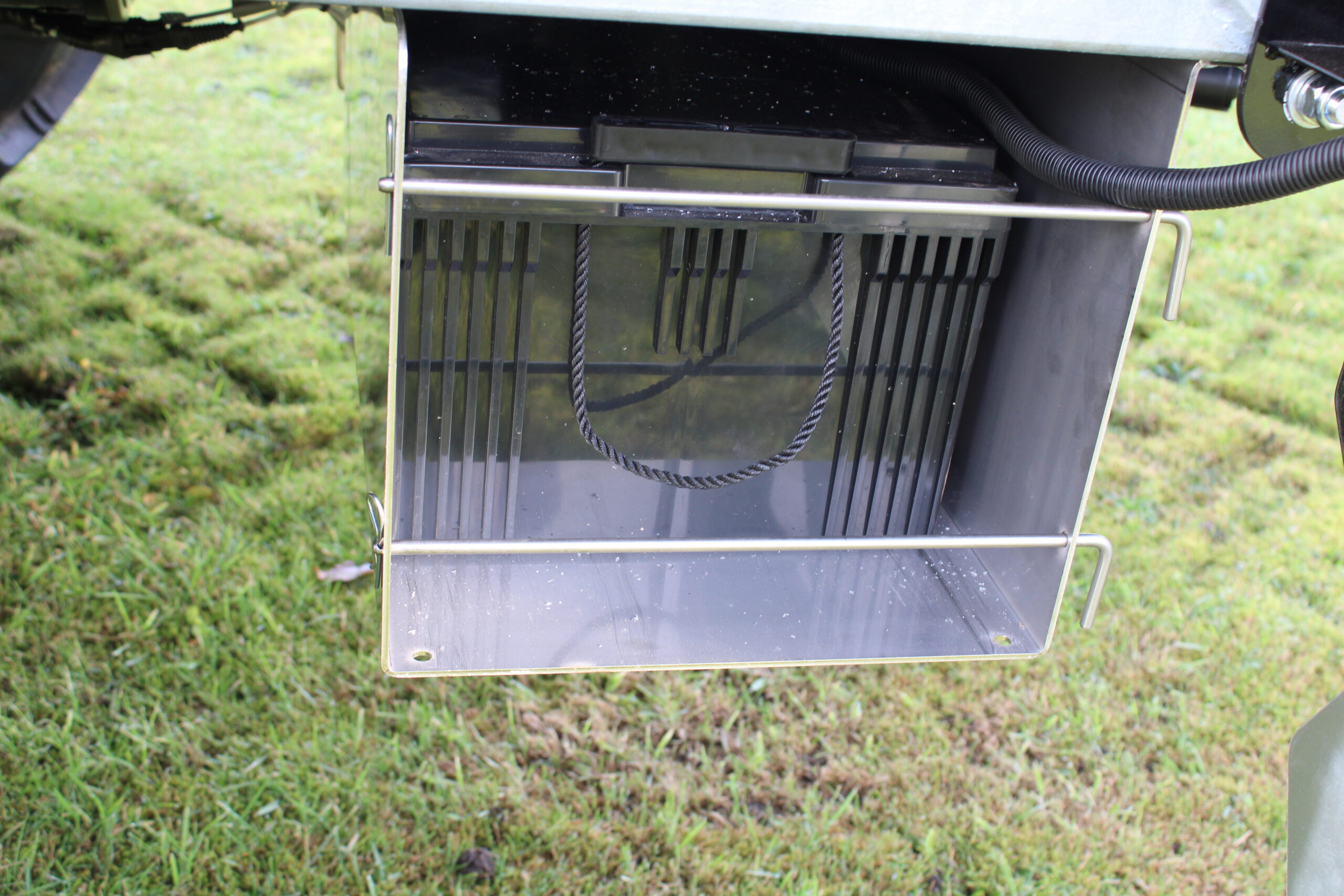

Battery

• Linak actuator for bypass
• Switch function for gun or boom irrigation
• Nelson Big Gun SR150

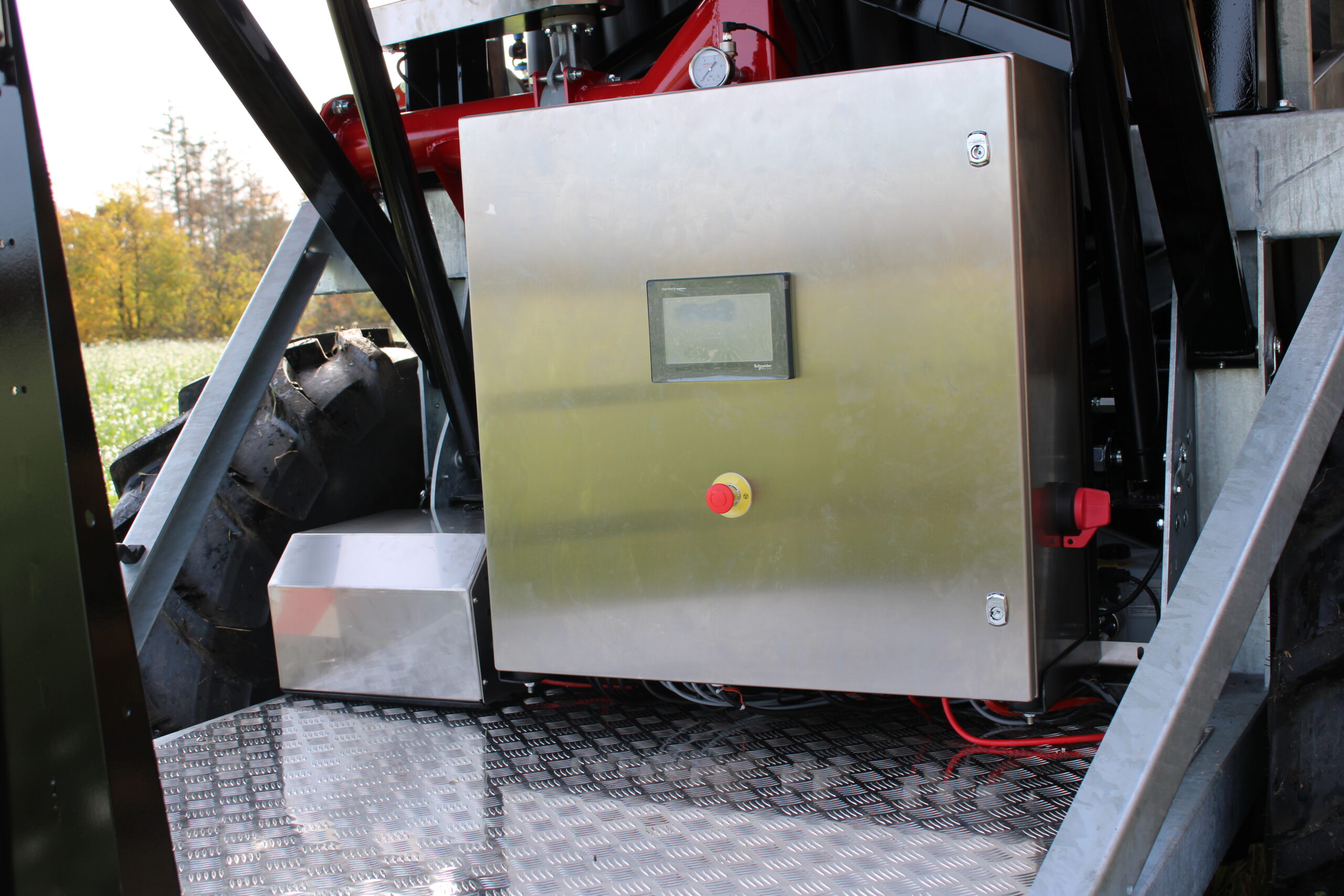

• Proprietary control box
• LED display for operation
• Modem with data card
• Online access via Schneider App

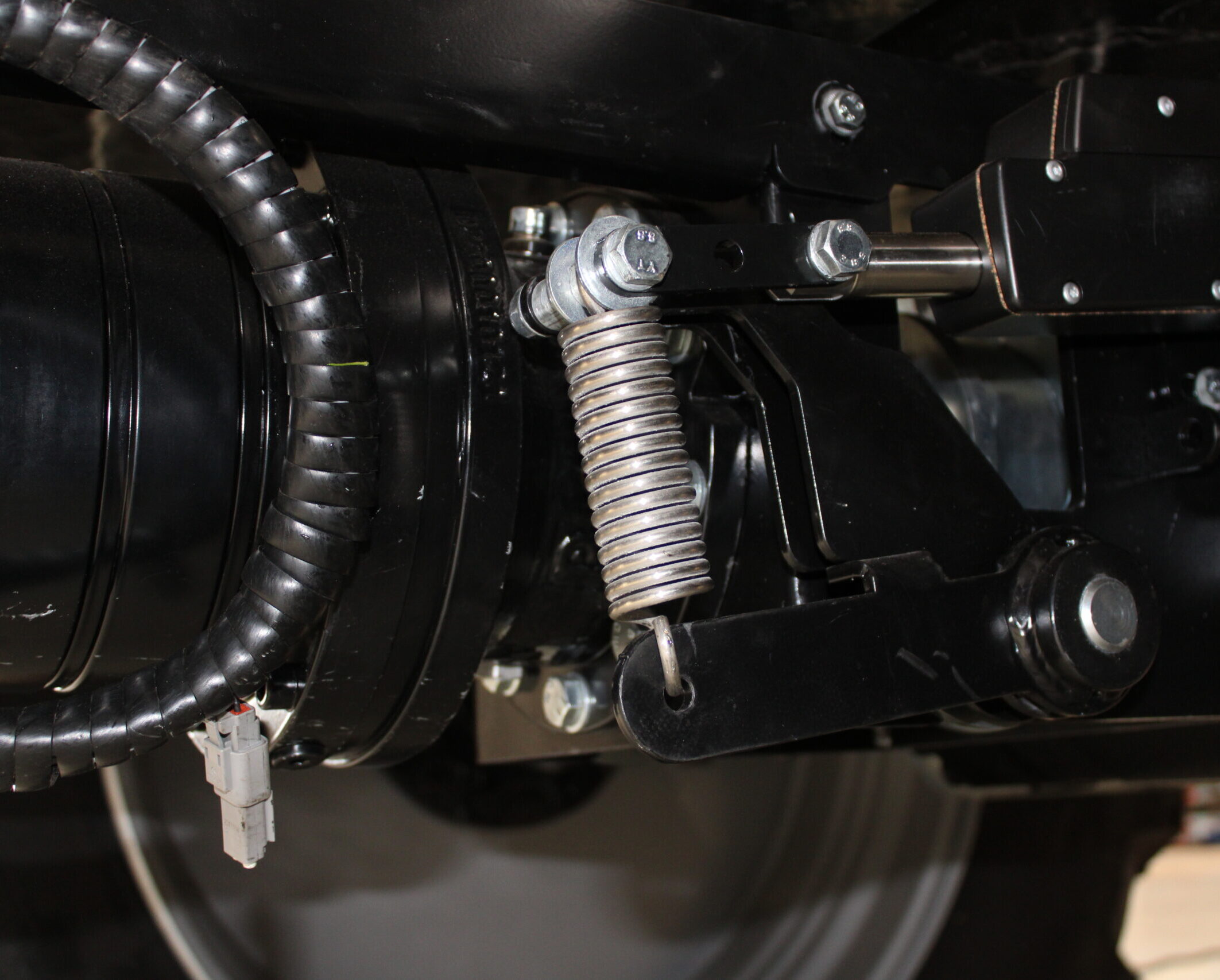

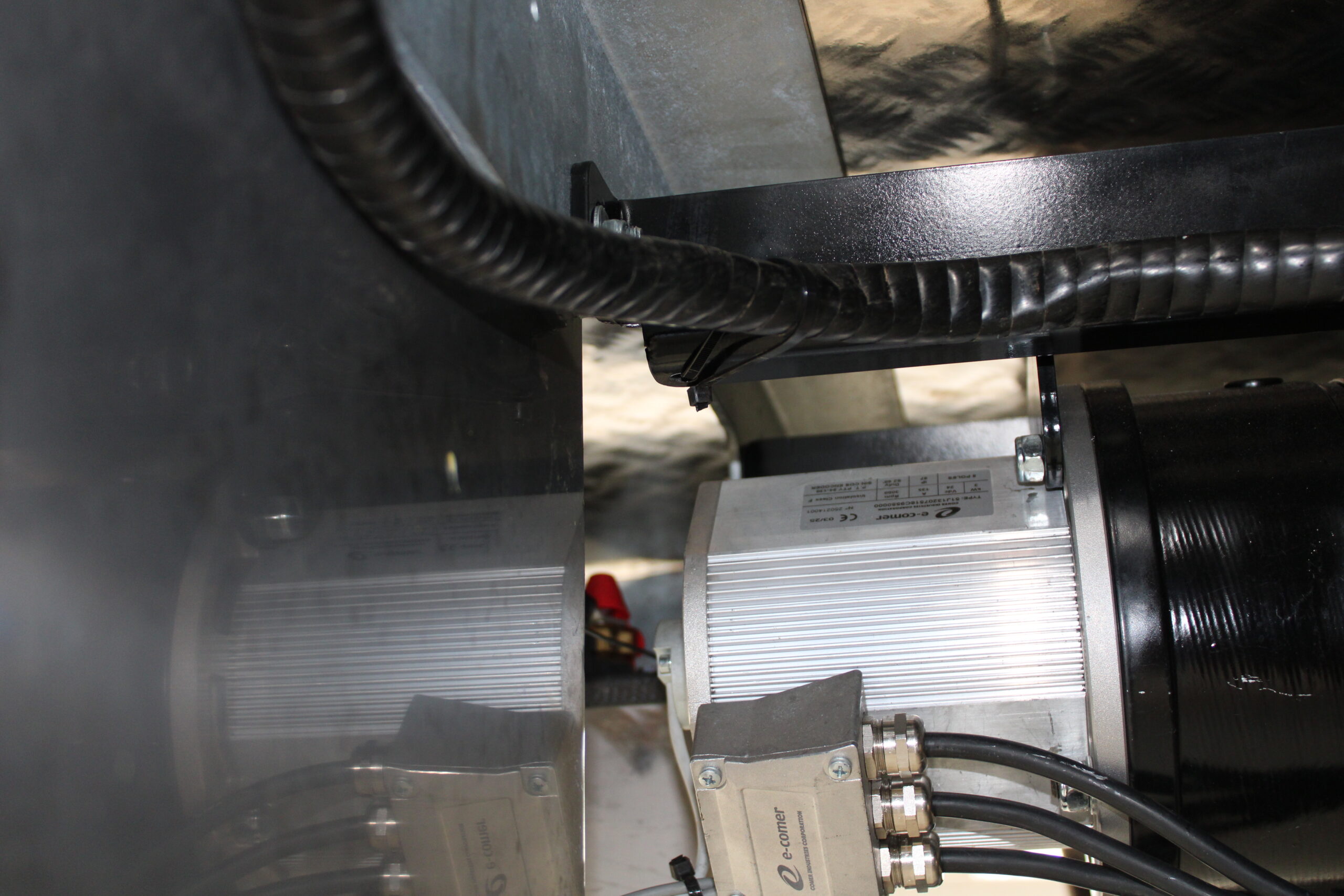

3.0 kW electric motor for propulsion.

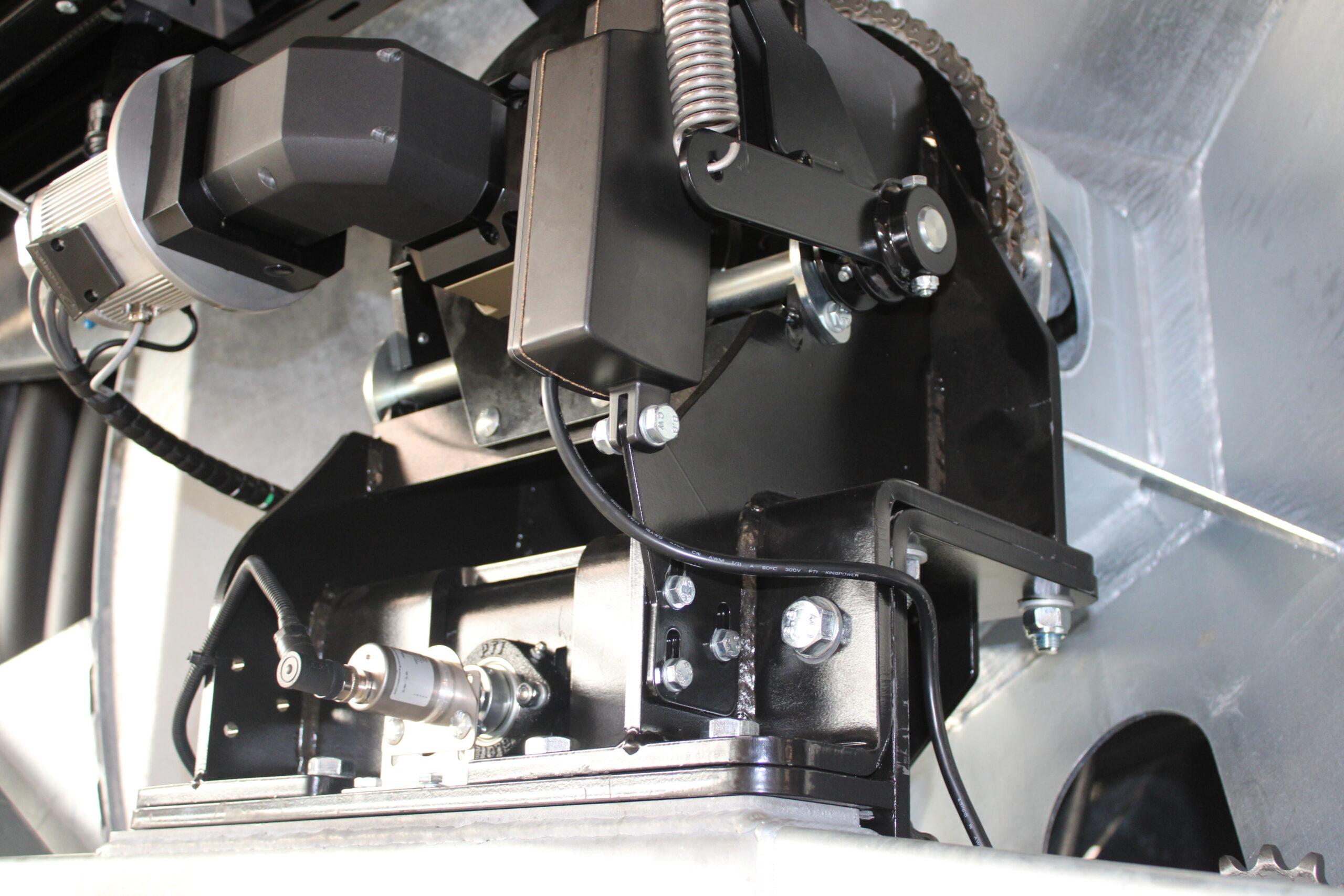

• 1 kW electric motor for reel rotation
• Angle gear
• Linak actuator (engagement/disengagement)
• Drum gear/hub
• Potentiometer (rotation monitor)
• Chain drive for hose guide

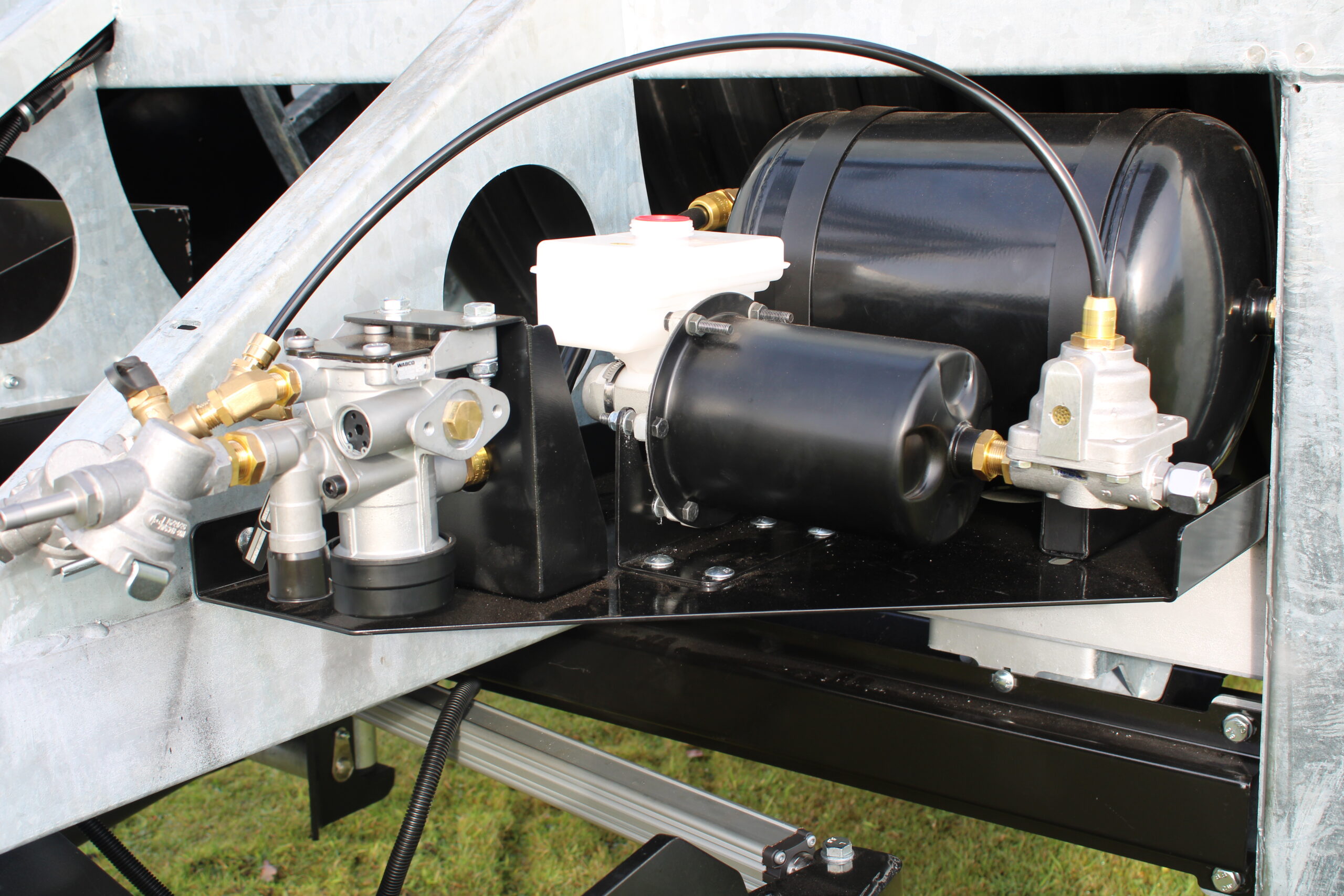

• Besko air brakes
• Comer rear axle with integrated brakes (prepared)

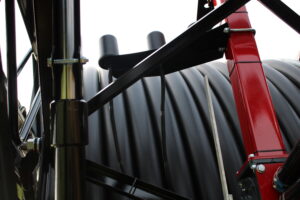

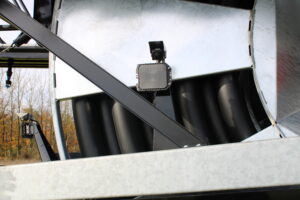

Monitoring and access via Agrirobot website.

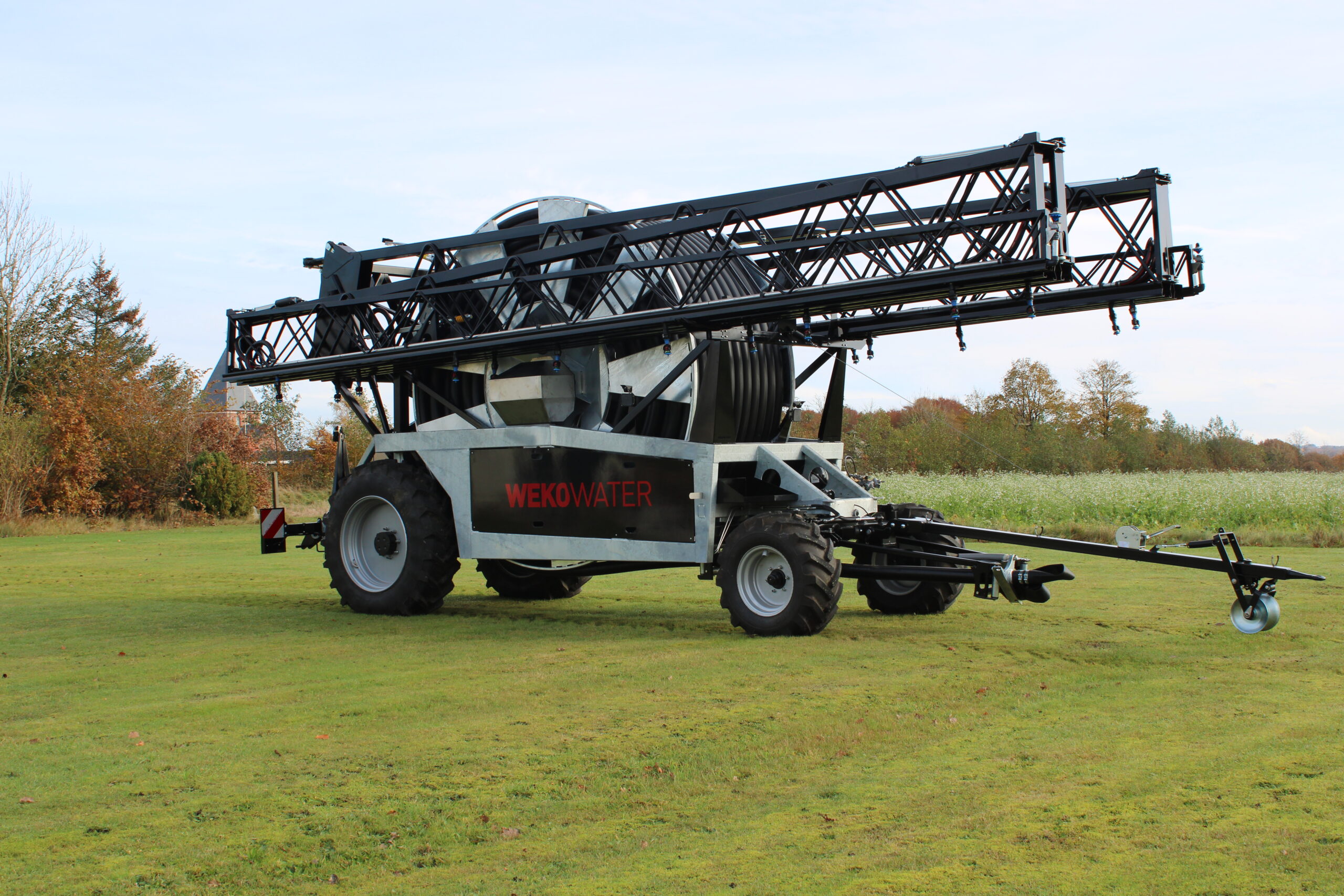

• Physical length: 54 m
• Spray width: 72 m
• Center section lifted by hydraulic station
• Boom sides can be raised/lowered independently
• Booms fold in/out via Linak actuator
• Nelson R3030 rotator sprinkler
• Nelson R65VT end sprinkler
• Nelson pressure regulator

• Linak actuator/steering rod

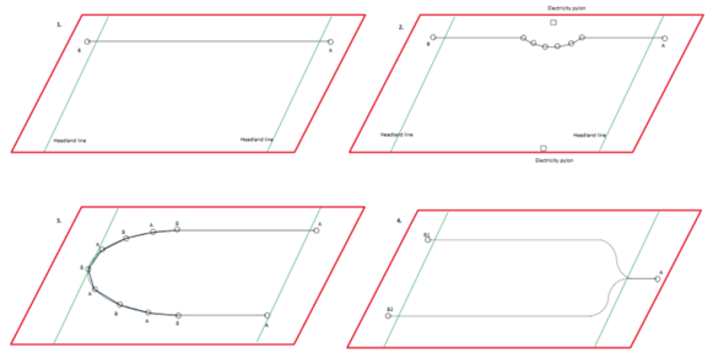

• Thorsen Teknik tablet with program access – route planning and field maps
